REAR WHEEL FOR HONDA EX5 DREAM 100, KICK START 2003

FUEL TANK

(1) 06410-KEV-900

DAMPER SET, WHEEL

(2) 40544-KFV-M20

ADJUSTER, L. CHAIN

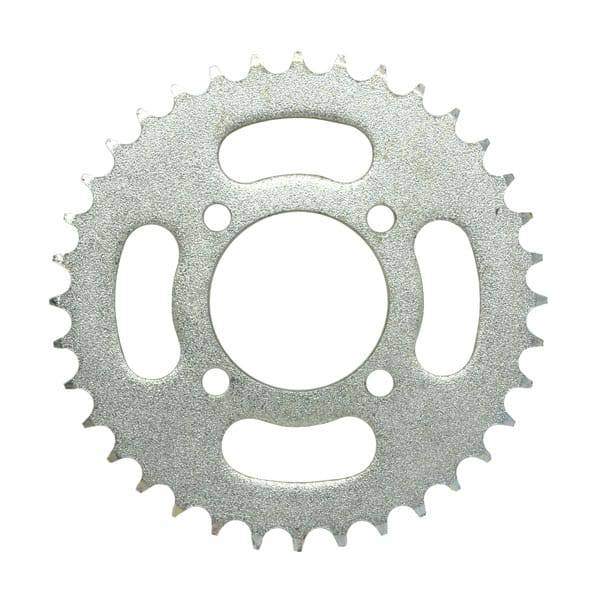

(3) 41201-GN5-900

C1003 SPROCKET FIN

(4) 42303-GN5-900

SLEEVE RR WHEEL

(5) 42304-GN5-900

COLLAR RR WHEEL SI

(6) 42605-171-305

SPOKE SET B, 10X16

(7) 42606-171-305

SPOKE B, 10X160.5

(8) 42610-GN5-305

FLANGE COMP.,FINAL

(9) 42620-001-010

COLLAR

(10) 42635-KFV-920ZC

Color of the vehicle: NH44MS
Color of the vehicle: NH44MS

HUB SUB ASSY.,RR *

(11) 42650-GN5-307ZE

Color of the vehicle: NH44MS
Color of the vehicle: NH44MS

WHEEL SUB ASSY., R

(12) 42653-001-004

O-RING, 40.5X3 (NIPPON DUST KEEPER)

(13) 42701-030-003

REAR WHEEL RIM (H)

(13) 42701-030-007

RIM, RR. WHEEL

(14) 42711-KFV-912

TIRE,RR.(IRC)(70/9

(15) 42712-041-154

TUBE, TIRE(IRC)

(17) 90128-GS4-000

BOLT, STUD, 8X43

(18) 90302-KBP-900

NUT, SPECIAL, 6MM

(19) 90306-KF0-003

NUT,FLANGE 12MM

(20) 90307-001-000

NUT REAR SLEEVE

(21) 90309-357-000

NUT, HEX., 8MM

(22) 90753-GK4-003

OIL SEAL, 27X40X6

(23) 94001-060000S

NUT, HEX, 6MM

(24) 96140-6203010

BEARING, RADIAL BALL, 6203U

(27) 96140-6301010

BEARING, RADIAL BA

	Part number	Description	Qty
# 1	06410-KEV-900 06410KEV900 06410KEV900	DAMPER SET, WHEEL	RM48,55
# 2	40544-KFV-M20 40544KFVM20 40544KFVM20	ADJUSTER, L. CHAIN	RM1,59
# 3	41201-GN5-900 41201GN5900 41201GN5900	C1003 SPROCKET FIN	RM42,82
# 4	42303-GN5-900 42303GN5900 42303GN5900	SLEEVE RR WHEEL	RM28,30
# 5	42304-GN5-900 42304GN5900 42304GN5900	COLLAR RR WHEEL SI	RM12,40
# 6	42605-171-305 42605171305 42605171305	SPOKE SET B, 10X16	RM1,06
# 7	42606-171-305 42606171305 42606171305	SPOKE B, 10X160.5	RM1,06
# 8	42610-GN5-305 42610GN5305 42610GN5305	FLANGE COMP., FINAL	RM38,48
# 9	42620-001-010 42620001010 42620001010	COLLAR	Not available	RM0,00
# 10	42635-KFV-920ZC 42635KFV920ZC 42635KFV920ZC	HUB SUB ASSY., RR *	RM98,79
# 11	42650-GN5-307ZE 42650GN5307ZE 42650GN5307ZE	WHEEL SUB ASSY., R	RM191,65
# 12	42653-001-004 42653001004 42653001004	O-RING, 40.5X3 (NIPPON DUST KEEPER)	RM7,63
# 13	42701-030-003 42701030003 42701030003	REAR WHEEL RIM (H)	RM53,74
# 13	42701-030-007 42701030007 42701030007	RIM, RR. WHEEL	RM53,74
# 14	42711-KFV-912 42711KFV912 42711KFV912	TIRE, RR.(IRC)(70/9	Contact	RM0,00
# 15	42712-041-154 42712041154 42712041154	TUBE, TIRE(IRC)	RM34,13
# 17	90128-GS4-000 90128GS4000 90128GS4000	BOLT, STUD, 8X43	RM8,37
# 18	90302-KBP-900 90302KBP900 90302KBP900	NUT, SPECIAL, 6MM	RM5,62
# 19	90306-KF0-003 90306KF0003 90306KF0003	NUT, FLANGE 12MM	RM8,69
# 20	90307-001-000 90307001000 90307001000	NUT REAR SLEEVE	RM11,77
# 21	90309-357-000 90309357000 90309357000	NUT, HEX., 8MM	RM13,67
# 22	90753-GK4-003 90753GK4003 90753GK4003	OIL SEAL, 27X40X6	RM17,70
# 23	94001-060000S 94001060000S 94001060000S	NUT, HEX, 6MM	RM1,70
# 24	96140-6203010 961406203010 961406203010	BEARING, RADIAL BALL, 6203U	RM49,29
# 27	96140-6301010 961406301010 961406301010	BEARING, RADIAL BA	RM41,98

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR WHEEL of your Honda EX5 DREAM 100, Kick start of C100. Let us know if you have any questions.
