REAR BRAKE PANEL - SHOES (1) FOR HONDA EX5 DREAM 100, KICK START 2003

REAR WHEEL

(1) 06450-096-652

SHOE SET, BRAKE (A

(1) 06450-096-651

SHOE SET, BRAKE (JB)

(2) 40543-KFV-M20

ADJUSTER, R. CHAIN

(3) 42301-GN5-900

AXLE RR WHEEL

(4) 42313-GB0-730

COLLAR RR BRK

(5) 43100-GB4-000ZD

Color of the vehicle: NH44MS
Color of the vehicle: NH44MS

--- PLATEAU COMP. FREIN AR. *NH44MS* (NH44MS ARGENTE SPECIAL METALLIQUE) *NH44MS*

(6) 43141-400-010

CAM REAR BRAKE

(7) 43145-KAN-850

INDICATOR RR BRK

(8) 43410-086-720

ARM, RR BRAKE

(9) 43434-286-000

RUBBER, STPR ARM C

(10) 45133-028-000

SPRING. BRK. SHOE

(11) 45134-250-000

DUST SEAL BRK.

(12) 90301-473-003

NUT, U, 6MM

(13) 90302-KBP-900

NUT, SPECIAL, 6MM

(14) 90505-425-000

WASHER, 8MM

(15) 92811-10000

BOLT A, BRK STPR

(16) 94001-060000S

NUT, HEX, 6MM

(17) 94001-080000S

NUT HEX 8MM

(18) 94201-20150

PIN, SPLIT, 2.0X15

(19) 95701-0603500

BOLT, FLANGE, 6X35

	Part number	Description	Qty
# 1	06450-096-651 06450096651 06450096651	SHOE SET, BRAKE (JB)	Contact	RM0,00
# 1	06450-096-652 06450096652 06450096652	SHOE SET, BRAKE (A	RM59,47
# 2	40543-KFV-M20 40543KFVM20 40543KFVM20	ADJUSTER, R. CHAIN	RM1,59
# 3	42301-GN5-900 42301GN5900 42301GN5900	AXLE RR WHEEL	RM40,60
# 4	42313-GB0-730 42313GB0730 42313GB0730	COLLAR RR BRK	RM2,12
# 5	43100-GB4-000ZD 43100GB4000ZD 43100GB4000ZD	--- PLATEAU COMP. FREIN AR. NH44MS (NH44MS ARGENTE SPECIAL METALLIQUE) NH44MS	Contact	RM0,00
# 6	43141-400-010 43141400010 43141400010	CAM REAR BRAKE	RM12,72
# 7	43145-KAN-850 43145KAN850 43145KAN850	INDICATOR RR BRK	RM5,83
# 8	43410-086-720 43410086720 43410086720	ARM, RR BRAKE	RM5,30

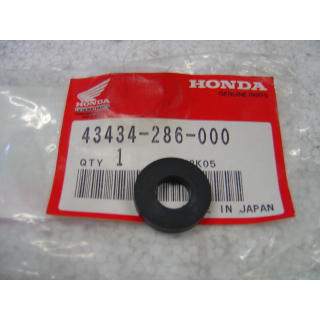

# 9	43434-286-000 43434286000 43434286000	RUBBER, STPR ARM C	RM1,59
# 10	45133-028-000 45133028000 45133028000	SPRING. BRK. SHOE	RM15,90
# 11	45134-250-000 45134250000 45134250000	DUST SEAL BRK.	RM7,63
# 12	90301-473-003 90301473003 90301473003	NUT, U, 6MM	RM13,14
# 13	90302-KBP-900 90302KBP900 90302KBP900	NUT, SPECIAL, 6MM	RM5,62
# 14	90505-425-000 90505425000 90505425000	WASHER, 8MM	RM8,80
# 15	92811-10000 9281110000 9281110000	BOLT A, BRK STPR	RM11,77
# 16	94001-060000S 94001060000S 94001060000S	NUT, HEX, 6MM	RM1,70
# 17	94001-080000S 94001080000S 94001080000S	NUT HEX 8MM	RM2,76
# 18	94201-20150 9420120150 9420120150	PIN, SPLIT, 2.0X15	RM1,48
# 19	95701-0603500 957010603500 957010603500	BOLT, FLANGE, 6X35	RM4,98

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the REAR BRAKE PANEL - SHOES (1) of your Honda EX5 DREAM 100, Kick start of C100. Let us know if you have any questions.
