PEDAL FOR HONDA HORNET 750 R 2023

STEP

(1) 24705-MLB-D00

PEDAL COMP., GEAR CHANGE

(2) 24710-MLB-D00

ARM COMP., GEAR CHANGE

(3) 24724-MBW-D21

COVER, DUST

(4) 35350-MKJ-E51

--- ENS INTERRUPTEUR MARCHE ARRIERE

(5) 35357-HP0-A00

SPRING, STOP SWITC

(6) 46500-KYJ-900

PEDAL COMP, RR, B

(7) 46513-KYJ-900

SPRING ASSY., BRAK

(8) 90023-GHB-660

BOLT, FLANGE, 6X20 (S-SHDR)

(9) 90115-KAF-000

BOLT,CHANGEPIVOT

(10) 90165-MLB-D00

BOLT, TIE ROD

(11) 90301-MGZ-J00

NUT, SPECIAL, 6MM

(12) 90505-MBW-000

WASHER, CHANGE PEDAL WAVE

(13) 90557-230-000

WASHER, 15.2X25

(14) 90601-KAF-003

CLIP, SWITCH COVER

(15) 90690-MEF-800

CLAMP, HARNESS

(16) 94002-060700S

NUT, HEX., 6MM

(17) 94511-15000

CIRCLIP, EXTERNAL,

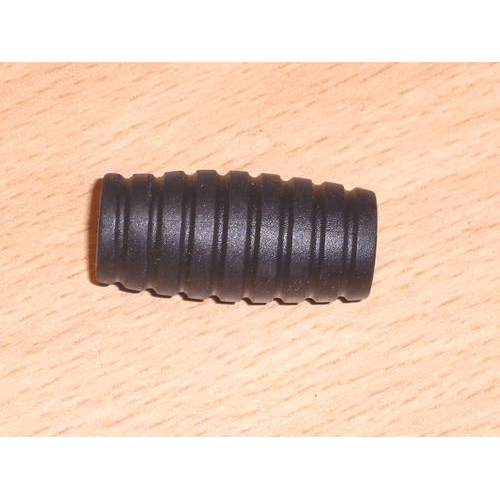

(18) 95011-40000

RUBBER, CHANGE PEDAL

	Part number	Description	Qty
# 1	24705-MLB-D00 24705MLBD00 24705MLBD00	PEDAL COMP., GEAR CHANGE	Contact	RM0,00
# 2	24710-MLB-D00 24710MLBD00 24710MLBD00	ARM COMP., GEAR CHANGE	Contact	RM0,00
# 3	24724-MBW-D21 24724MBWD21 24724MBWD21	COVER, DUST	RM16,22
# 4	35350-MKJ-E51 35350MKJE51 35350MKJE51	--- ENS INTERRUPTEUR MARCHE ARRIERE	Contact	RM0,00
# 5	35357-HP0-A00 35357HP0A00 35357HP0A00	SPRING, STOP SWITC	RM8,90
# 6	46500-KYJ-900 46500KYJ900 46500KYJ900	PEDAL COMP, RR, B	RM29,89
# 7	46513-KYJ-900 46513KYJ900 46513KYJ900	SPRING ASSY., BRAK	RM3,39
# 8	90023-GHB-660 90023GHB660 90023GHB660	BOLT, FLANGE, 6X20 (S-SHDR)	Contact	RM0,00
# 9	90115-KAF-000 90115KAF000 90115KAF000	BOLT, CHANGEPIVOT	RM25,44
# 10	90165-MLB-D00 90165MLBD00 90165MLBD00	BOLT, TIE ROD	Contact	RM0,00
# 11	90301-MGZ-J00 90301MGZJ00 90301MGZJ00	NUT, SPECIAL, 6MM	RM7,84
# 12	90505-MBW-000 90505MBW000 90505MBW000	WASHER, CHANGE PEDAL WAVE	Contact	RM0,00
# 13	90557-230-000 90557230000 90557230000	WASHER, 15.2X25	RM7,42
# 14	90601-KAF-003 90601KAF003 90601KAF003	CLIP, SWITCH COVER	RM7,63
# 15	90690-MEF-800 90690MEF800 90690MEF800	CLAMP, HARNESS	Contact	RM0,00
# 16	94002-060700S 94002060700S 94002060700S	NUT, HEX., 6MM	Contact	RM0,00
# 17	94511-15000 9451115000 9451115000	CIRCLIP, EXTERNAL,	RM2,44
# 18	95011-40000 9501140000 9501140000	RUBBER, CHANGE PEDAL	Contact	RM0,00

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the PEDAL of your Honda HORNET 750 R of HORNET. Let us know if you have any questions.
