FRONT WHEEL FOR HONDA CB 250 R 2023

REAR BRAKE MASTER CYLINDER

(1) 38514-K94-T10

--- ATTACHE, CAPTEUR

(2) 38520-K98-E21

SENSOR, FR. WHEEL SPEED

(3) 42753-GM9-743

VALVE, RIM (IRC)

(4) 44301-K94-T00

AXLE, FR. WHEEL

(5) 44311-KYJ-900

COLLAR, FR. WHEEL

(6) 44515-K0A-DB0

RING, FR. PULSER

(7) 44620-K94-T00

COLLAR, FR. AXLE DISTANCE

(8) 44650-K94-T10ZD

Color of the vehicle: 44650K94T10
Color of the vehicle: 44650K94T10

--- ENS. AUXILIAIRE DE ROUE AV. *YR325M* (YR325M MARRON META *44650K94T10*

(8) 44650-K94-T10ZC

Color of the vehicle: 44650K94T10
Color of the vehicle: 44650K94T10

WHEEL SUB ASSY., FR. *NH303M* (NH303M GRIS MAT METALLIQUE) *44650K94T10*

(9) 44711-K94-T02

TIRE, FR. (DUNLOP) (110/70R17M/C 54H)

(10) 44721-MGH-H21

WEIGHT, BALANCE (10G)

(10) 44722-MGH-H21

WEIGHT, BALANCE (15G)

(10) 44723-MGH-H21

WEIGHT, BALANCE (20G)

(11) 45223-MGC-003

--- RESSORT, DISQUE AV.

(12) 45225-K0A-DB0

--- COLLIER, DISQUE AV.

(13) 45226-K94-T00

--- RONDELLE, DISQUE AV.

(14) 45251-K94-T01

DISK, FR. BRAKE

(15) 90106-K0A-DB0

--- BOULON DE TORX, 8X18

(16) 90117-KZZ-J80

BOLT, FLANGE, 6X14

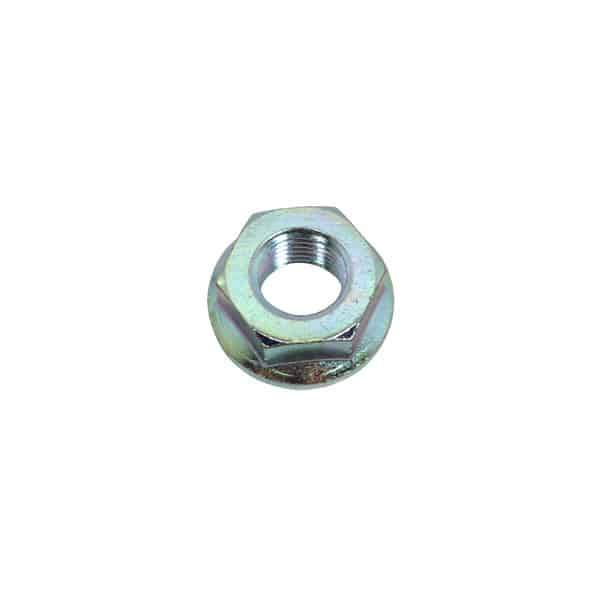

(17) 90305-K64-N00

NUT, AXLE, 14MM

(19) 90690-MGS-D81

CLIP, CABLE, 12MM

(20) 91051-KVS-F01

--- ROULEMENT A BILLES RADIAL, 6302UU L (FUJIKOSHI)

(21) 91252-MC7-003

DUST SEAL, 22X42X7 (ARAI)

(22) 90117-KZZ-J80

BOLT, FLANGE, 6X14

	Part number	Description	Qty
# 1	38514-K94-T10 38514K94T10 38514K94T10	--- ATTACHE, CAPTEUR	Contact	RM0,00
# 2	38520-K98-E21 38520K98E21 38520K98E21	SENSOR, FR. WHEEL SPEED	Contact	RM0,00
# 3	42753-GM9-743 42753GM9743 42753GM9743	VALVE, RIM (IRC)	RM11,87
# 4	44301-K94-T00 44301K94T00 44301K94T00	AXLE, FR. WHEEL	Contact	RM0,00
# 5	44311-KYJ-900 44311KYJ900 44311KYJ900	COLLAR, FR. WHEEL	Contact	RM0,00
# 6	44515-K0A-DB0 44515K0ADB0 44515K0ADB0	RING, FR. PULSER	Contact	RM0,00
# 7	44620-K94-T00 44620K94T00 44620K94T00	COLLAR, FR. AXLE DISTANCE	Contact	RM0,00
# 8	44650-K94-T10ZC 44650K94T10ZC 44650K94T10ZC	WHEEL SUB ASSY., FR. NH303M (NH303M GRIS MAT METALLIQUE) 44650K94T10	Contact	RM0,00
# 8	44650-K94-T10ZD 44650K94T10ZD 44650K94T10ZD	--- ENS. AUXILIAIRE DE ROUE AV. YR325M (YR325M MARRON META 44650K94T10	Contact	RM0,00
# 9	44711-K94-T02 44711K94T02 44711K94T02	TIRE, FR. (DUNLOP) (110/70R17M/C 54H)	Contact	RM0,00
# 10	44721-MGH-H21 44721MGHH21 44721MGHH21	WEIGHT, BALANCE (10G)	Contact	RM0,00
# 10	44722-MGH-H21 44722MGHH21 44722MGHH21	WEIGHT, BALANCE (15G)	Contact	RM0,00
# 10	44723-MGH-H21 44723MGHH21 44723MGHH21	WEIGHT, BALANCE (20G)	Contact	RM0,00
# 11	45223-MGC-003 45223MGC003 45223MGC003	--- RESSORT, DISQUE AV.	Contact	RM0,00
# 12	45225-K0A-DB0 45225K0ADB0 45225K0ADB0	--- COLLIER, DISQUE AV.	Contact	RM0,00
# 13	45226-K94-T00 45226K94T00 45226K94T00	--- RONDELLE, DISQUE AV.	Contact	RM0,00
# 14	45251-K94-T01 45251K94T01 45251K94T01	DISK, FR. BRAKE	Contact	RM0,00
# 15	90106-K0A-DB0 90106K0ADB0 90106K0ADB0	--- BOULON DE TORX, 8X18	Contact	RM0,00
# 16	90117-KZZ-J80 90117KZZJ80 90117KZZJ80	BOLT, FLANGE, 6X14	Contact	RM0,00
# 17	90305-K64-N00 90305K64N00 90305K64N00	NUT, AXLE, 14MM	Contact	RM0,00
# 19	90690-MGS-D81 90690MGSD81 90690MGSD81	CLIP, CABLE, 12MM	Contact	RM0,00
# 20	91051-KVS-F01 91051KVSF01 91051KVSF01	--- ROULEMENT A BILLES RADIAL, 6302UU L (FUJIKOSHI)	Contact	RM0,00
# 21	91252-MC7-003 91252MC7003 91252MC7003	DUST SEAL, 22X42X7 (ARAI)	Contact	RM0,00
# 22	90117-KZZ-J80 90117KZZJ80 90117KZZJ80	BOLT, FLANGE, 6X14	Contact	RM0,00

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
