Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRONT WHEEL

REAR WHEEL - SWINGARM FOR HONDA PCX 150 HYBRID 2020

SINGLE SEAT (2)

REAR WHEEL - SWINGARM Honda SCOOTER 150 PCX 2020 WW150HVJ
1
SHOE SET,BRAKE
SHOE SET, BRAKE

06430-KWN-900   06430KWN900

06430KWN900

Unit Price Incl. Tax

2
UNDER.RUBBER.BUSH REAR.CUSHION

11203-K35-J00  

11203-KVB-901
 11203K35J00

Unit Price Incl. Tax

2
UNDER.RUBBER.BUSH REAR.CUSHION
UNDER.RUBBER.BUSH REAR.CUSHION

11203-KVB-901   11203KVB901

11203KVB901

Unit Price Incl. Tax

3
COLLAR, RR WHEEL SIDE

42311-K96-V00   42311K96V00

42311K96V00

Unit Price Incl. Tax

4
COLLAR B, RR WHEEL SIDE

42312-KWN-700   42312KWN700

42312KWN700

Unit Price Incl. Tax

5
WHEEL SUB ASSY, REAR

42650-K97-T00ZA   42650K97T00ZA

42650K97T00ZA

Unit Price Incl. Tax

6
--- PNEU AR. (IRC) (120/70-14M/C 61P)

42711-K96-V01   42711K96V01

42711K96V01
Contact
7
VALVE RIM (IRC)

42753-GM9-743   42753GM9743

42753GM9743

Unit Price Incl. Tax

7
VALVE RIM (IRC)

42753-KBS-901  

42753-GM9-743
 42753KBS901

Unit Price Incl. Tax

7
VALVE,RIM(TRITON)
VALVE, RIM(TRITON)

42753-KWF-901  

42753-K38-901
 42753KWF901

Unit Price Incl. Tax

8
CAM, REAR BRAKE

43141-KWN-930   43141KWN930

43141KWN930

Unit Price Incl. Tax

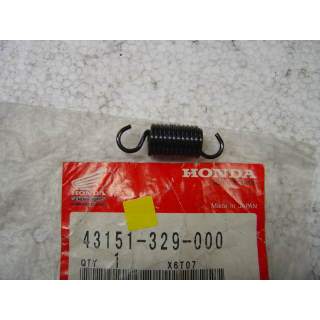

9
SPRING RR BRK.
SPRING RR BRK.

43151-329-000   43151329000

43151329000

Unit Price Incl. Tax

10
ARM COMP, REAR BRAKE

43410-K97-T00   43410K97T00

43410K97T00

Unit Price Incl. Tax

11
NUT, BRAKE ROD ADJUSTING

43459-GN5-760   43459GN5760

43459GN5760
Contact
12
SPG, RR BRK ARM

43472-K97-T00   43472K97T00

43472K97T00

Unit Price Incl. Tax

13
--- ENS. BRAS OSCILLANT AR *NH1* (NH1 NOIR)

52100-K96-V00   52100K96V00

52100K96V00
Contact
14
BOLT, FLANGE 6X35

90112-K97-T00   90112K97T00

90112K97T00

Unit Price Incl. Tax

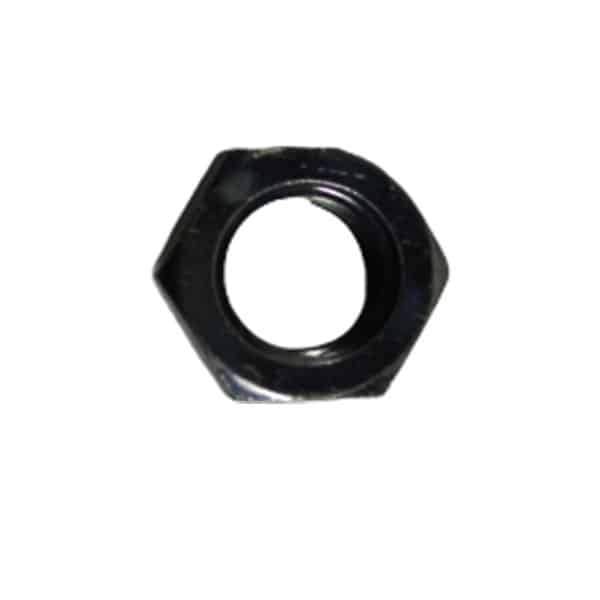

15
NUT,U,16MM
NUT, U, 16MM

90305-KWN-701   90305KWN701

90305KWN701

Unit Price Incl. Tax

16
CIRCLIP, IN 40

90651-KZR-601   90651KZR601

90651KZR601

Unit Price Incl. Tax

16
CIR CLIP, IN 40MM

94520-40000   9452040000

9452040000

Unit Price Incl. Tax

17
BRG, BALL RADIAL 6203UU L(NSK)

91051-K35-V01   91051K35V01

91051K35V01

Unit Price Incl. Tax

17
BRG, BALL RADIAL 6203UU L(NTN)

91051-K35-V02   91051K35V02

91051K35V02

Unit Price Incl. Tax

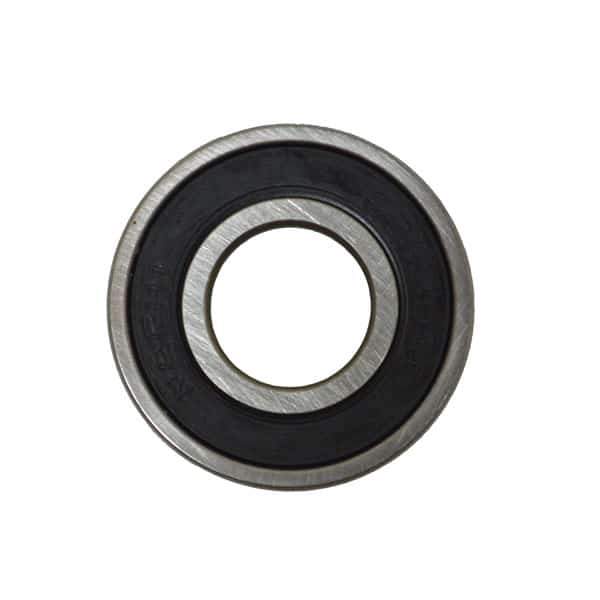

17
BRG,BALL RADIAL 6203UU L(NACHI
BRG, BALL RADIAL 6203UU L(NACHI

91051-K35-V03   91051K35V03

91051K35V03

Unit Price Incl. Tax

17
BRG, BALL RADIAL 6203UU L(NACHI

91051-K35-V04  

91051-K35-V03
 91051K35V04

Unit Price Incl. Tax

18
DUST SEAL,25X40X5
DUST SEAL, 25X40X5

91252-K35-V01   91252K35V01

91252K35V01

Unit Price Incl. Tax

19
DUST SEAL, 25X35X6

91253-K35-V01   91253K35V01

91253K35V01

Unit Price Incl. Tax

20
WASHER 10MM

94101-10000   9410110000

9410110000

Unit Price Incl. Tax

21
JOINT B.BRK.ARM
JOINT B.BRK.ARM

95015-32001   9501532001

9501532001

Unit Price Incl. Tax

22
BOLT, FLANGE 10X40

95701-1004000   957011004000

957011004000

Unit Price Incl. Tax

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
