CYLINDER HEAD FOR HONDA BEAT 110 STREET CBS 2020

CAMSHAFT / VALVE

(1) 12200-K1A-N00

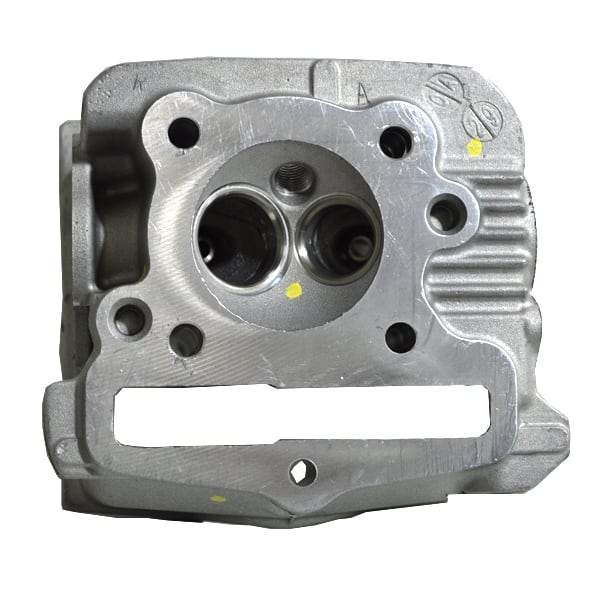

HEAD COMP., CYLINDER

(2) 12204-K0J-P00

GUIDE, VALVE (O.S.)

(3) 12206-K0J-N00

CLIP, VALVE GUIDE

(4) 12252-K0J-N00

--- JOINT DE CULASSE (O.S.) (0.75/1.00)

(4) 12251-K0J-N01

GASKET, CYLINDER HEAD

(5) 31919-K25-601

PLUG, SPARK(MR9C-9N)(NGK)

(5) 31919-K25-602

--- BOUGIE D'ALLUMAGE (U27EPR-N9) (DENSO)

(6) 36532-K1A-N01

--- CAPTEUR D'OXYGENE (NGK)

(7) 37750-K0J-N21

--- ASSEM. DE CAPTEUR,TEMPERATURED'HUILE (MITSUBISHI)

(7) 37750-K1A-N01

--- ASSEM. DE CAPTEUR,TEMPERATURED'HUILE (PANASONIC)

(8) 90032-K0J-N00

--- GOUJON, 7X16.5

(9) 90201-GCC-000

NUT, HEX, 7MM

(10) 90402-KWW-740

WASHER, 7.2X16X2.5

(11) 90701-KFM-900

DOWEL PIN, SPECIAL, 8X14

(12) 91304-K1A-N01

--- JOINT TORIQUE, 6.3X2.5

(12) 91304-K0J-N21

O-RING, 16.5X2.5

(13) 93404-0601200

BOLT-WASHER, 6X12

(14) 95701-0610500

BOLT, FLANGE, 6X105

(15) 96001-0601600

BOLT, FLANGE, 6X16

	Part number	Description	Qty
# 1	12200-K1A-N00 12200K1AN00 12200K1AN00	HEAD COMP., CYLINDER	Contact	RM0,00
# 2	12204-K0J-P00 12204K0JP00 12204K0JP00	GUIDE, VALVE (O.S.)	Contact	RM0,00
# 3	12206-K0J-N00 12206K0JN00 12206K0JN00	CLIP, VALVE GUIDE	Contact	RM0,00
# 4	12251-K0J-N01 12251K0JN01 12251K0JN01	GASKET, CYLINDER HEAD	Contact	RM0,00
# 4	12252-K0J-N00 12252K0JN00 12252K0JN00	--- JOINT DE CULASSE (O.S.) (0.75/1.00)	Contact	RM0,00
# 5	31919-K25-601 31919K25601 31919K25601	PLUG, SPARK(MR9C-9N)(NGK)	RM12,51
# 5	31919-K25-602 31919K25602 31919K25602	--- BOUGIE D'ALLUMAGE (U27EPR-N9) (DENSO)	Contact	RM0,00
# 6	36532-K1A-N01 36532K1AN01 36532K1AN01	--- CAPTEUR D'OXYGENE (NGK)	Contact	RM0,00
# 7	37750-K0J-N21 37750K0JN21 37750K0JN21	--- ASSEM. DE CAPTEUR, TEMPERATURED'HUILE (MITSUBISHI)	Contact	RM0,00
# 7	37750-K1A-N01 37750K1AN01 37750K1AN01	--- ASSEM. DE CAPTEUR, TEMPERATURED'HUILE (PANASONIC)	Contact	RM0,00
# 8	90032-K0J-N00 90032K0JN00 90032K0JN00	--- GOUJON, 7X16.5	Contact	RM0,00
# 9	90201-GCC-000 90201GCC000 90201GCC000	NUT, HEX, 7MM	RM1,80
# 10	90402-KWW-740 90402KWW740 90402KWW740	WASHER, 7.2X16X2.5	RM1,91
# 11	90701-KFM-900 90701KFM900 90701KFM900	DOWEL PIN, SPECIAL, 8X14	RM0,85
# 12	91304-K0J-N21 91304K0JN21 91304K0JN21	O-RING, 16.5X2.5	Contact	RM0,00
# 12	91304-K1A-N01 91304K1AN01 91304K1AN01	--- JOINT TORIQUE, 6.3X2.5	Contact	RM0,00
# 13	93404-0601200 934040601200 934040601200	BOLT-WASHER, 6X12	RM0,64
# 14	95701-0610500 957010610500 957010610500	BOLT, FLANGE, 6X105	Contact	RM0,00
# 15	96001-0601600 960010601600 960010601600	BOLT, FLANGE, 6X16	RM0,42

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Honda BEAT 110 STREET CBS of BEAT. Let us know if you have any questions.
