FRAME FOR HONDA BEAT 110 CBS 2017

TOOLS - BATTERY BOX

(1) 35010-K81-M00

KEY SET

(2) 35100-K81-M01

--- SWITCH ASSY., COMBINATION & LOCK

(3) 35101-K81-M01

--- COMP. COMMUTATEUR, COMBINE ETVERROUILLAGE

(4) 35110-K81-M01

--- OBTURATEUR, CLE

(5) 35121-K81-M00

--- CLEF DE BLANC (M0TAGTOP2REPORDER)

(6) 50100-K81-N00

BODY COMP., FRAME *NH303M*

(7) 50350-K81-N00

LINK ASSY., ENGINE HANGER

(8) 50352-K59-A10

RUBBER, LINK STOPPER

(9) 64223-K81-N00

STAY, FR. COVER

(11) 83551-300-000

GROMMET, AIR CLEANER CASE

(12) 90105-KVY-900

BOLT, FLANGE, 10X270

(13) 90106-GCC-000

BOLT, FLANGE, 10X238

(14) 90111-MR5-000

BOLT, SOCKET, 5X9

(15) 90164-KZL-A00

SCREW, U-LOCK FLAT, 6X12

(16) 90304-KGH-901

NUT, U, 10MM

(17) 95701-0803500

BOLT, FLANGE, 8X35

(18) 95701-0804500

BOLT FLNG, 8X45

	Part number	Description	Qty
# 1	35010-K81-M00 35010K81M00 35010K81M00	KEY SET	Contact	RM0,00
# 2	35100-K81-M01 35100K81M01 35100K81M01	--- SWITCH ASSY., COMBINATION & LOCK	Contact	RM0,00
# 3	35101-K81-M01 35101K81M01 35101K81M01	--- COMP. COMMUTATEUR, COMBINE ETVERROUILLAGE	Contact	RM0,00
# 4	35110-K81-M01 35110K81M01 35110K81M01	--- OBTURATEUR, CLE	Contact	RM0,00
# 5	35121-K81-M00 35121K81M00 35121K81M00	--- CLEF DE BLANC (M0TAGTOP2REPORDER)	Contact	RM0,00
# 6	50100-K81-N00 50100K81N00 50100K81N00	BODY COMP., FRAME NH303M	Contact	RM0,00
# 7	50350-K81-N00 50350K81N00 50350K81N00	LINK ASSY., ENGINE HANGER	Contact	RM0,00

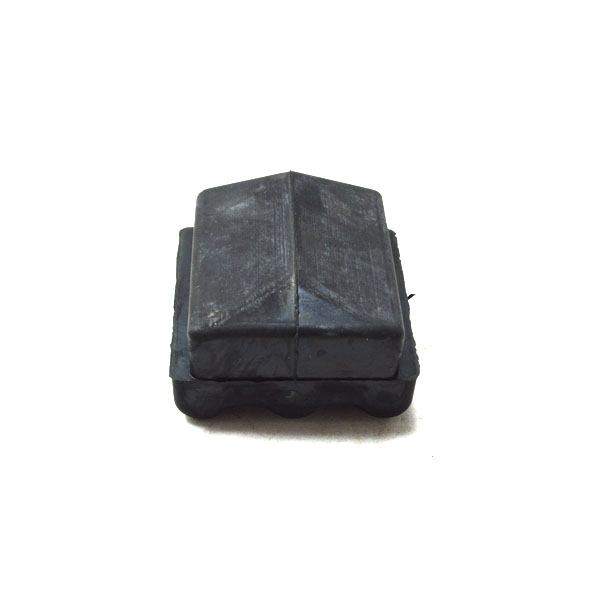

# 8	50352-K59-A10 50352K59A10 50352K59A10	RUBBER, LINK STOPPER	Contact	RM0,00

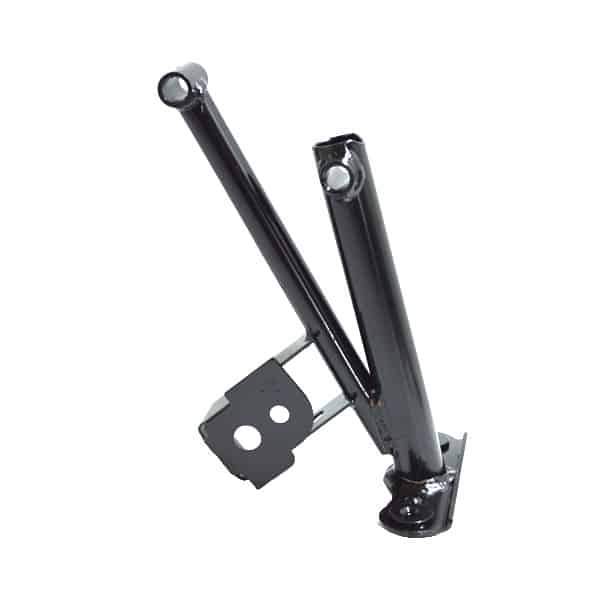

# 9	64223-K81-N00 64223K81N00 64223K81N00	STAY, FR. COVER	Contact	RM0,00
# 11	83551-300-000 83551300000 83551300000	GROMMET, AIR CLEANER CASE	RM1,59
# 12	90105-KVY-900 90105KVY900 90105KVY900	BOLT, FLANGE, 10X270	RM11,77
# 13	90106-GCC-000 90106GCC000 90106GCC000	BOLT, FLANGE, 10X238	RM11,45
# 14	90111-MR5-000 90111MR5000 90111MR5000	BOLT, SOCKET, 5X9	RM4,56
# 15	90164-KZL-A00 90164KZLA00 90164KZLA00	SCREW, U-LOCK FLAT, 6X12	Contact	RM0,00
# 16	90304-KGH-901 90304KGH901 90304KGH901	NUT, U, 10MM	RM3,92

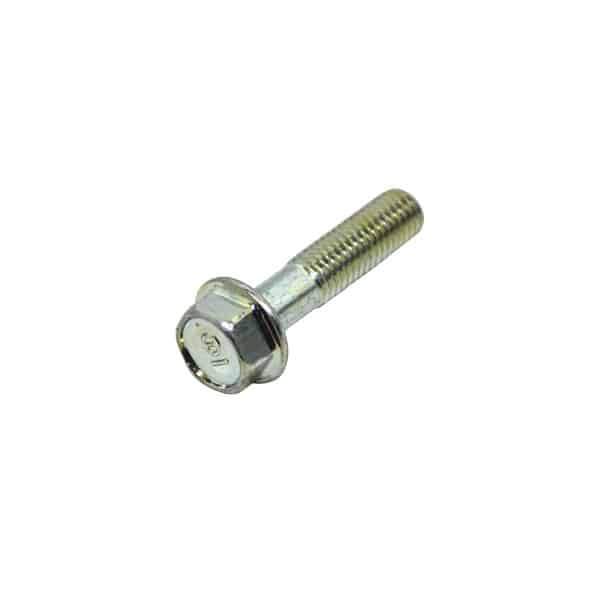

# 17	95701-0803500 957010803500 957010803500	BOLT, FLANGE, 8X35	Contact	RM0,00
# 18	95701-0804500 957010804500 957010804500	BOLT FLNG, 8X45	RM8,06

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Honda BEAT 110 CBS of BEAT. Let us know if you have any questions.
