LEFT CRANKCASE COVER (NF100M / MDM / ANF100MSR) FOR HONDA WAVE 100 MDM, ELECTRIC START 2005

LEFT CRANKCASE COVER - ALTERNATOR (2)

(1) 11341-KRS-930

COVER, L. CRANKCAS

(2) 11360-KRS-940

COVER, L. RR. CRANKCASE (KICK)

(3) 11395-GBJ-730

GASKET, L CRANKCAS

(4) 32961-KFL-850

CLAMPER, A.C. GENE

(5) 35759-KFL-852

CONTACT ASSY, CHANGE SW-KRSS

(6) 90084-GN5-830

CAP, A.C. GENERATO

(7) 90087-GN5-830

CAP, 30MM

(8) 90601-KJ9-000

CLIP 4 X 50

(9) 90702-KFM-900

DOWEL PIN, 8X12

(10) 91301-028-000

O-RING 27X2

(11) 91303-377-000

O-RING, 13.8X2.5

(12) 96001-0601600

BOLT, FLANGE, 6X16

(13) 96001-0602000

BOLT FLANGE,SH 6X2

(14) 96001-0603200

KWWH BOLT,FLANGE,S

(15) 96001-0605000

BOLT, FLANGE, 6X50

(16) 96001-0607000

BOLT FLANGE 6X70

	Part number	Description	Qty
# 1	11341-KRS-930 11341KRS930 11341KRS930	COVER, L. CRANKCAS	RM45,58
# 2	11360-KRS-940 11360KRS940 11360KRS940	COVER, L. RR. CRANKCASE (KICK)	RM15,79

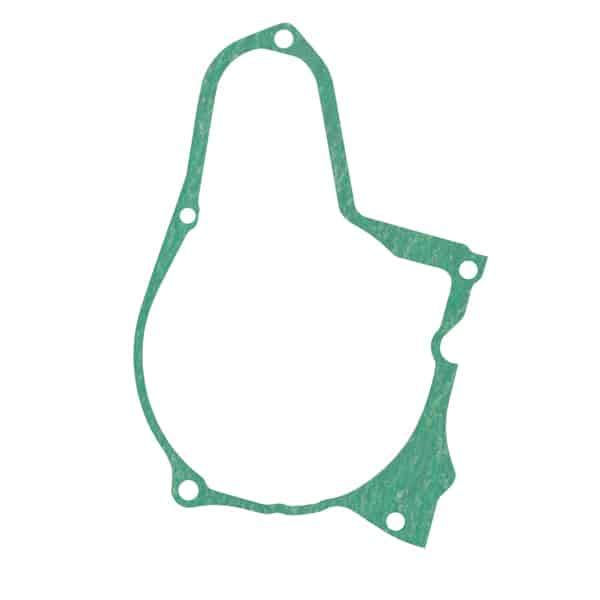

# 3	11395-GBJ-730 11395GBJ730 11395GBJ730	GASKET, L CRANKCAS	RM7,21
# 4	32961-KFL-850 32961KFL850 32961KFL850	CLAMPER, A.C. GENE	RM1,06
# 5	35759-KFL-852 35759KFL852 35759KFL852	CONTACT ASSY, CHANGE SW-KRSS	RM63,71
# 6	90084-GN5-830 90084GN5830 90084GN5830	CAP, A.C. GENERATO	RM0,85
# 7	90087-GN5-830 90087GN5830 90087GN5830	CAP, 30MM	RM1,59
# 8	90601-KJ9-000 90601KJ9000 90601KJ9000	CLIP 4 X 50	RM6,89
# 9	90702-KFM-900 90702KFM900 90702KFM900	DOWEL PIN, 8X12	RM0,85
# 10	91301-028-000 91301028000 91301028000	O-RING 27X2	RM2,54
# 11	91303-377-000 91303377000 91303377000	O-RING, 13.8X2.5	RM0,74
# 12	96001-0601600 960010601600 960010601600	BOLT, FLANGE, 6X16	RM0,42
# 13	96001-0602000 960010602000 960010602000	BOLT FLANGE, SH 6X2	RM0,42
# 14	96001-0603200 960010603200 960010603200	KWWH BOLT, FLANGE, S	RM5,09
# 15	96001-0605000 960010605000 960010605000	BOLT, FLANGE, 6X50	RM8,48
# 16	96001-0607000 960010607000 960010607000	BOLT FLANGE 6X70	RM8,06

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Honda, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
