STARTER MOTOR CLUTCH FOR HONDA EX5 DREAM 100, KICK START 2005

CRANKCASE - OIL PUMP

(1) 15661-GN5-910

PLATE, OIL SEPARAT

(2) 22110-KFL-D00

OUTER COMP, CLUTCH

(3) 22121-KFM-900

CENTER, CLUTCH (69

(4) 22201-KBW-900

DISK, CLUTCH FRICTION

(5) 22311-KN4-680

PLATE, CLUTCH

(6) 22350-115-020

PLATE, CLUTCH PRES

(7) 22361-KFM-900

PLATE, CLUTCH LIFT

(8) 22401-KEV-900

SPRING, CLUTCH

(9) 23112-GCE-900

COLLAR, CENTER CLU

(10) 23217-GN5-910

SET RING, 17MM

(11) 90050-KFL-850

BOLT, SPECIAL FLAN

(12) 90231-198-000

NUT B, LOCK, 14MM

(13) 90402-KFM-900

WASHER THRUST 14MM

(14) 90403-HA0-000

WASHER, THRUST, 17

(15) 90432-086-000

WASHER B, LOCK

(16) 90462-KFL-850

WASHER B, SPLINE,

(17) 95701-0602000

BOLT, FLANGE, 6X20

(18) 96100-6200000

BEARING, RADIAL BA

	Part number	Description	Qty
# 1	15661-GN5-910 15661GN5910 15661GN5910	PLATE, OIL SEPARAT	RM7,53
# 2	22110-KFL-D00 22110KFLD00 22110KFLD00	OUTER COMP, CLUTCH	RM310,47
# 3	22121-KFM-900 22121KFM900 22121KFM900	CENTER, CLUTCH (69	RM40,49

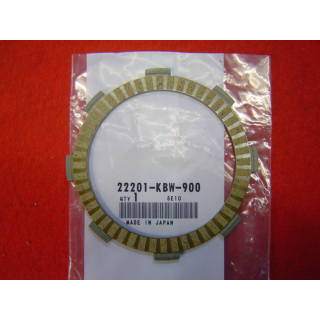

# 4	22201-KBW-900 22201KBW900 22201KBW900	DISK, CLUTCH FRICTION	RM23,32

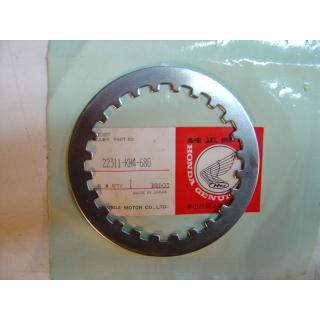

# 5	22311-KN4-680 22311KN4680 22311KN4680	PLATE, CLUTCH	RM28,09
# 6	22350-115-020 22350115020 22350115020	PLATE, CLUTCH PRES	RM83,63
# 7	22361-KFM-900 22361KFM900 22361KFM900	PLATE, CLUTCH LIFT	RM14,10
# 8	22401-KEV-900 22401KEV900 22401KEV900	SPRING, CLUTCH	RM9,96
# 9	23112-GCE-900 23112GCE900 23112GCE900	COLLAR, CENTER CLU	RM23,32
# 10	23217-GN5-910 23217GN5910 23217GN5910	SET RING, 17MM	RM0,74
# 11	90050-KFL-850 90050KFL850 90050KFL850	BOLT, SPECIAL FLAN	RM0,85
# 12	90231-198-000 90231198000 90231198000	NUT B, LOCK, 14MM	RM8,69
# 13	90402-KFM-900 90402KFM900 90402KFM900	WASHER THRUST 14MM	RM1,59
# 14	90403-HA0-000 90403HA0000 90403HA0000	WASHER, THRUST, 17	RM2,33
# 15	90432-086-000 90432086000 90432086000	WASHER B, LOCK	RM1,48
# 16	90462-KFL-850 90462KFL850 90462KFL850	WASHER B, SPLINE,	RM6,15
# 17	95701-0602000 957010602000 957010602000	BOLT, FLANGE, 6X20	RM0,53
# 18	96100-6200000 961006200000 961006200000	BEARING, RADIAL BA	RM7,10

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Honda. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR CLUTCH of your Honda EX5 DREAM 100, Kick start of C100. Let us know if you have any questions.
